Gufata muri Vent Valve
| IZINA RY'IBICURUZWA | SgusinziraMuri Vent Valve |
| URUBUGA RWA PRODUCT ： | AYN-SIVVD8.7_PC_TB10HO |

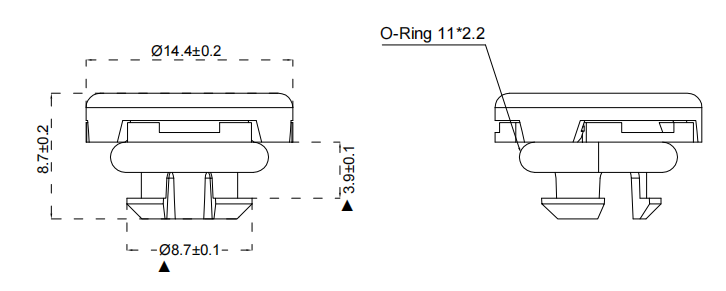

| DIAGRAM： |  |
| MURUBUGA RWA EMBRANE ： | AYN-TB10HO |
| UMUTUNGO W'UMUBIRI
| IKIZAMINI CY'IKIZAMINI
| UNIT
| DATA YUBUNTU
|
| Ibara | / | / | Umukara |
| Ibikoresho | / | / | PC |
| Ikidodo color | / | / | Umutuku |
| Ikidodo c'impeta Ibikoresho | / | / | Silicone Rubber |
| Kubaka Membrane | / | / | PTFE / PET idoda |
| Membrane S.urfaceUmutungo | / | / | Hydrophobic & Oleophobic |
| UbwokoIgipimo cy’ikirere | ASTM D737 | ml / min @ 7KPa | 300 |
| Umuvuduko winjira mumazi | ASTM D751 (测试成品) | KPa ituye amasegonda 30 | ≥120 |
| Icyiciro cya IP | IEC 60529 | / | IP67 / IP68 |
| Ikwirakwizwa ry'umwuka | ASTM E96 | g/m2/ 24h | > 5000 |
| Ubushyuhe bwa serivisi | IEC 60068-2-14 | ℃ | -40 ℃ ~ 130 ℃ |
| ROHS | IEC 62321 | / | Kuzuza ibisabwa ROHS |
| SHAKASVHC | SHAKA 1907/2006 / EC | / | Guhura R.BURI WESEIbisabwa |

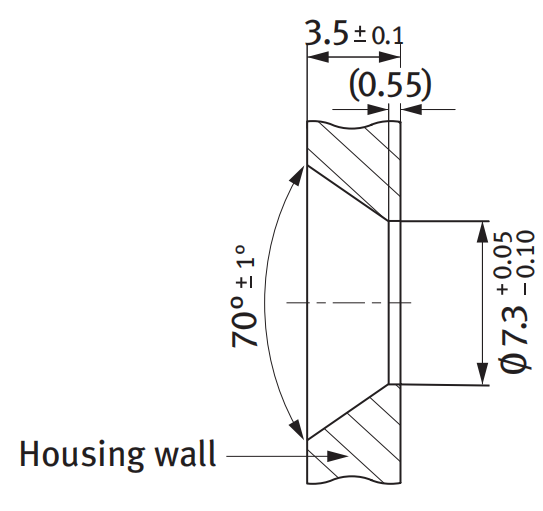

| Reyashimye Kwishyiriraho D.imensions |  |
AYN® S.gusinzira-Mu mwuka uhumeka uringaniza neza umuvuduko no kugabanya ubukonje mu bigo bifunze, mugihe wirinze ibintu byanduye kandi byamazi. AYN® S.gusinzira-Mu Vent Valve ikoreshwa mukurinda Automotive sensibilité igenzura, sensor / moteri, moteri hamwe na Hybrid / ibice byamashanyarazi.
Ubuzima bwa Shelf ni imyaka 5 uhereye igihe wakiriye iki gicuruzwa mugihe cyose ibicuruzwa bibitswe mubipfunyika byumwimerere mubidukikije biri munsi ya 80 ° F (27 ° C) na 60% RH.
Amakuru yose yavuzwe haruguru ni amakuru asanzwe ya membrane yibikoresho fatizo, kubisobanuro gusa, kandi ntibigomba gukoreshwa nkamakuru yihariye yo kugenzura ubuziranenge busohoka.
Amakuru yose ya tekiniki ninama zitangwa hano zishingiye kubunararibonye bwa Aynuo nibisubizo byikizamini. Aynuo atanga aya makuru mubumenyi bwayo, ariko nta nshingano zemewe n'amategeko. Abakiriya basabwe kugenzura ibikwiriye no gukoreshwa mubisabwa byihariye, kubera ko imikorere yibicuruzwa ishobora gucirwa gusa mugihe amakuru yose akenewe aboneka.
